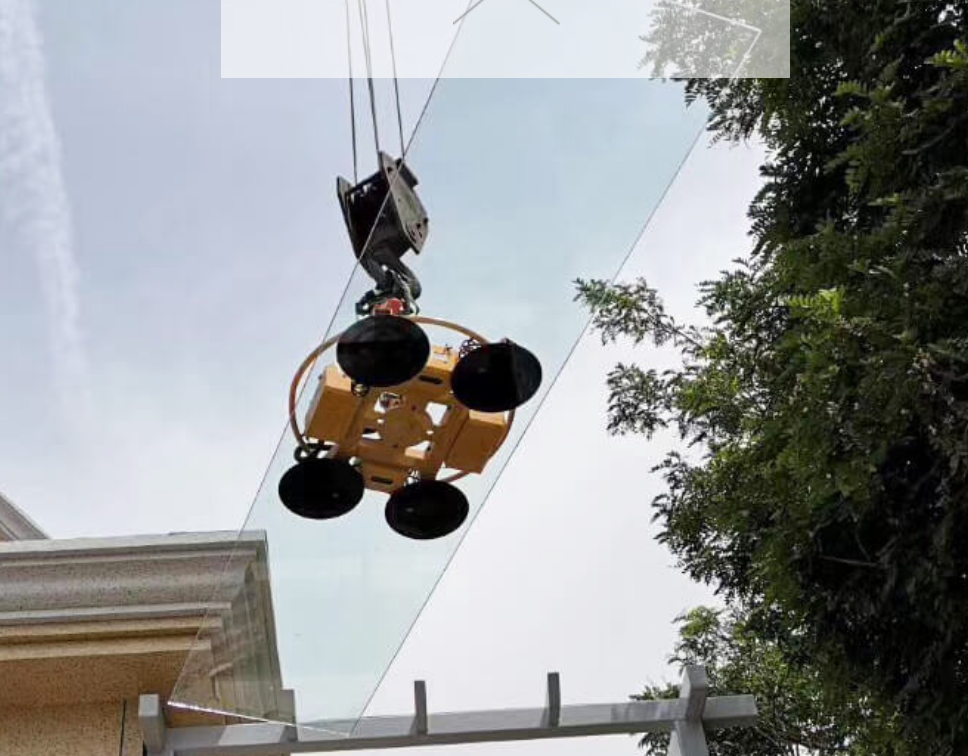

Glass Sucker can be used for lifting glass., it could be lifted by a counterweight crane and wire rope hoist , or mini crane. suspended scaffolds can be used for installing the curtain wall glass.
Component function description：
1. Vacuum pump: oil-free air-cooled vacuum pump, DC12V, DC charging type to generate vacuum, it is the core part of the vacuum system, the highest vacuum is 75%;
2. Vacuum suction cup: used to adsorb on the surface of the workpiece, and the rubber is in contact with the workpiece to ensure that it will not damage the surface of the workpiece;
3. Vacuum filter: used to filter impurities and particles on the surface of the workpiece or in the air to ensure the service life of the vacuum pump;
4. Pressure sensor: used to visually display the vacuum pressure of the system to the operator and provide safety assurance; when the pressure of the vacuum system is insufficient, it transmits electrical signals to the alarm system;
5. Push-pull valve: control and switch the passage between the vacuum pump and the suction cup, the suction cup and the atmosphere;
6. Vacuum check valve: When the system is powered off, it will automatically close the passage between the vacuum pump and the atmosphere, lock the vacuum energy of the accumulator, and provide sufficient pressure holding time to ensure that the workpiece will not suddenly fall;
7. Manual ball valve: used to manually open or close the passage between the vacuum pump and the suction cup, easy to maintain;
8. Alarm indicator: when the suction of a single group of suction cups is insufficient, the corresponding indicator will alarm
Design standards
（1）The design strictly follows the European CE standard EN13155: 2016, the American ASME (Mechanical Engineering Association) B30-20-2006 standard and the German UVV18 standard, and the main design indicators are higher than the above standards;
（2）Safety factor: The main structure is 4.0, the safety vacuum degree is 65%, and the Khumeni standard is 85%, which is 20% higher than the safety standard.
| Type | GH400-4S | Operation method | Manually flip 90 degrees,manually rotate 360 degrees |
|---|---|---|---|
| Total power | 0.09kw | Greatest pressure | 75% vacuum degree(0.85kgf) |

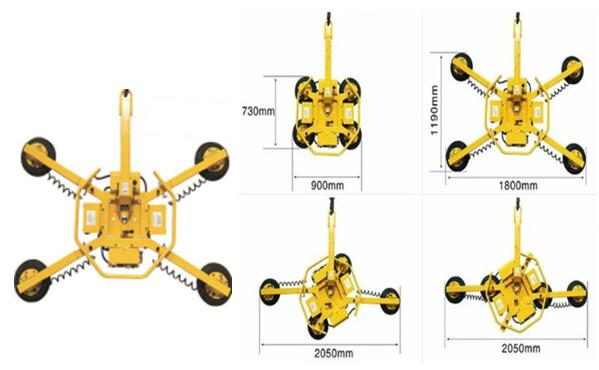

| Dimensions | 1800*1190*240mm | Safety pressure | 55% vacuum(0.55kgf) |
| Equipment power distribution | DC12V | Suction and release time | The absorption time is less than 10 seconds; the release time is less than 2 to 3 seconds; |
| Equipment weight | 90kg | Power-off retention time | ≥20min |
| Maximum load | Horizontal handing,Max400kg | Efficiency | 24 hours continuous operation |
| Sucker number | 4 pcs | Alarm function | Equipment with automatic detection of negative pressure alarm function |
| Sucker Diameter(mm) | φ300 | ||
| Way to control | Manual valve control |
- How to choose
Install glass check out this video for details:https://www.youtube.com/watch?v=mB4OjsLHoY4
